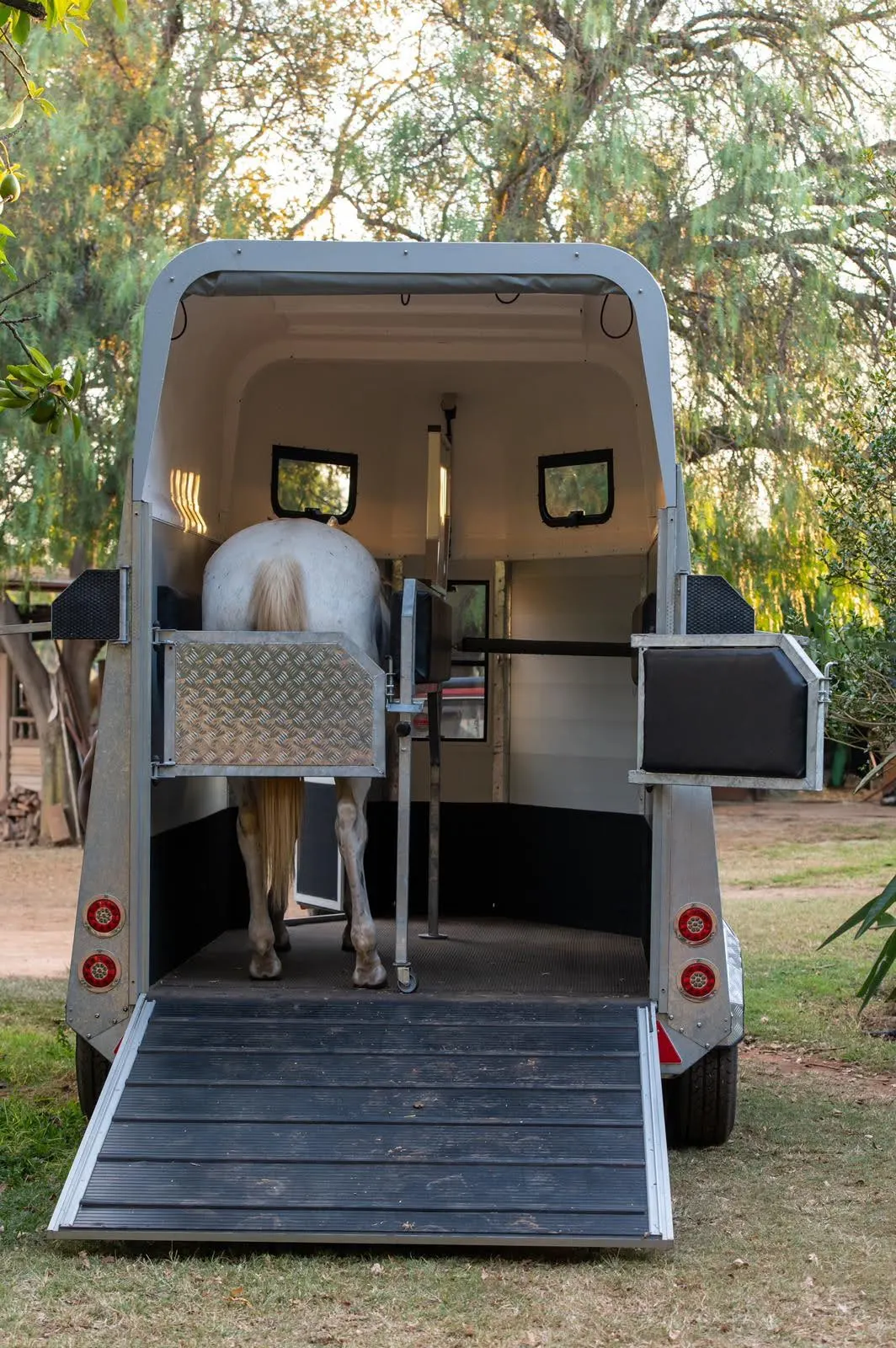

Loaded and ready: rear ramp down, rear gates open
What's standard
- Hot-dip galvanised steel chassis
- Twin "Rubberride" galvanised axles, 1600kg each, with overrun brakes
- 195R14C steel wheels
- Aluminium hollow-extrusion wall panels and extruded aluminium floor
- Aluminium ramp with ridged non-slip rubber

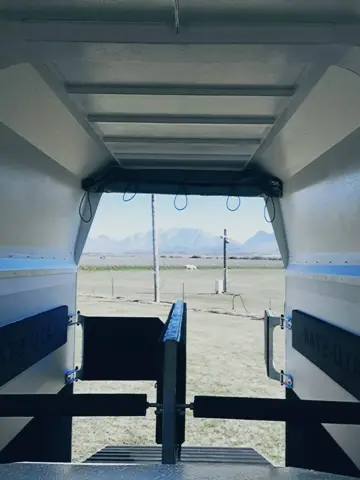

- 8mm non-slip rubber floor mat, rubber sheet 500mm up the sides

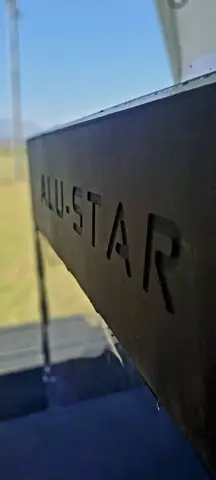

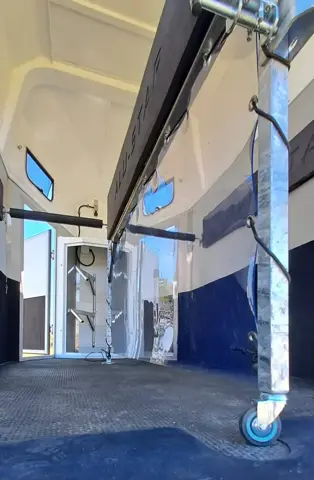

- Side padding and padded centre partition

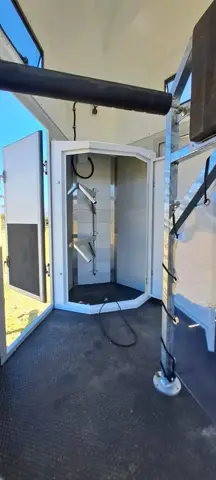

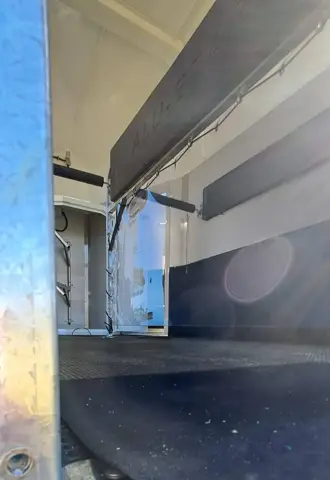

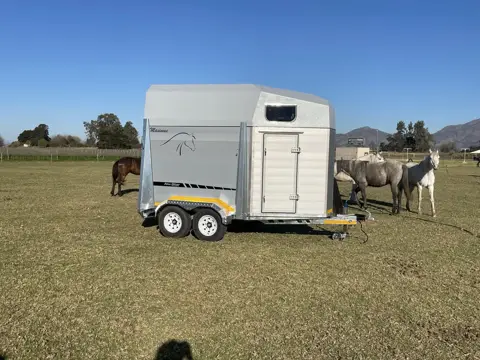

- Front access doors on both sides, and a sliding front window
- Panic release for the chest bars
- UV-filtered pop-up top side windows
- Rear curtain with automatic roll-up and access foothold
- Padded rear slam gates
- Double jockey wheel (60mm)
- NATIS introduction and DataDot included
Horseboxes

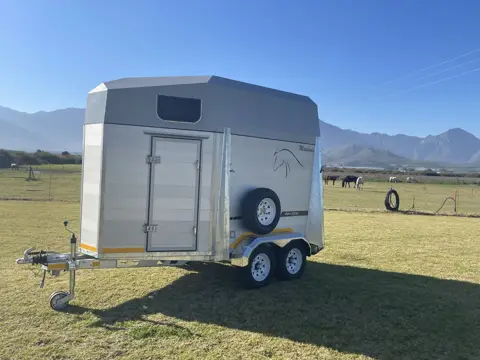

Maximus 2 Berth Horsebox
Building horseboxes since 1989
A two-horse aluminium horsebox on a hot-dip galvanised chassis, designed for South African conditions: light, corrosion-resistant and easy to keep clean, with the padding, ventilation and access details your horses and grooms will thank you for.
Build yours
Your Maximus 2 Berth Horsebox, your way
Prices include VAT. Weights update your payload and licence code as you go.
Options and extras
Also available, priced on request

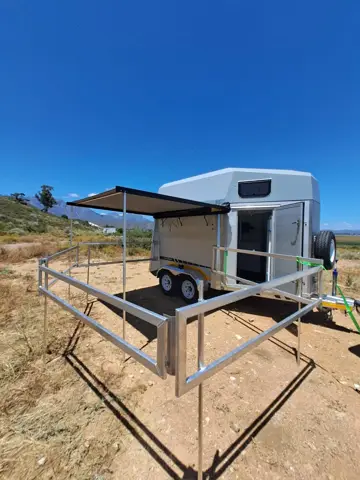

Awning · 15" wheels (205/70R15) · Alloy rims · Wireless camera · Electrical system (lights, battery, charger)

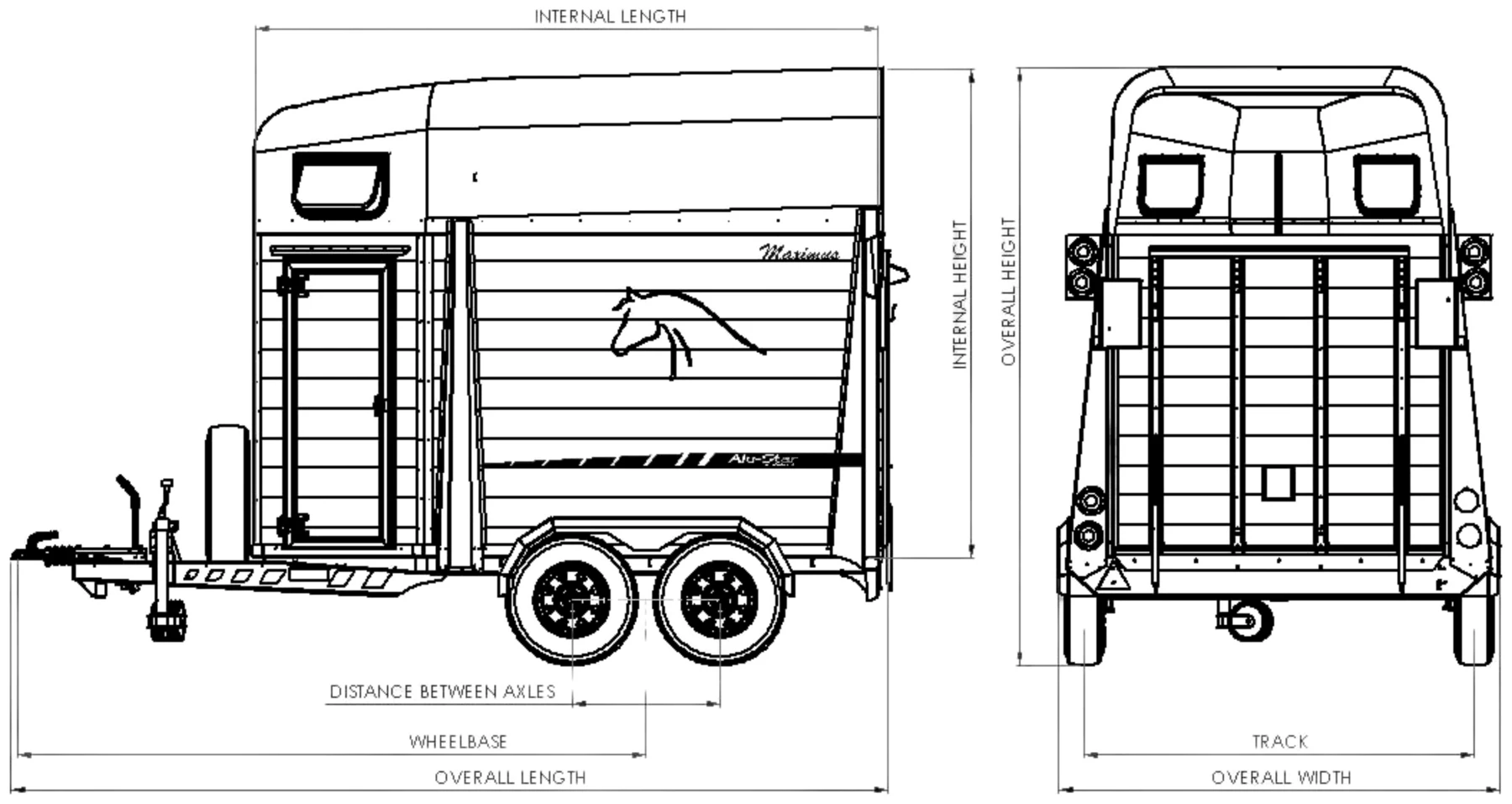

Sizes and weights
For the Maximus 2 Berth Horsebox as you've built it above.
| Internal length | 3130mm |
|---|---|
| Internal width | 1680mm |
| Internal height | 2350mm |
| Estimated tare | 920kg |
| GVM | 2500kg |
| Payload left | 1580kg |
Is the Maximus 2 Berth Horsebox right for you?
Perfect if you want
- A horsebox for life
- A soft, quiet ride on gravel roads, without the clunks and rattles that unsettle horses
- No rust: horse urine eats away at steel, not aluminium
- Light for its strength, so it's easier to tow
Ask us
Get a quote for this Maximus 2 Berth Horsebox
Send us your build and we'll confirm the price, the build slot and delivery to your town. The Alu-Star team answers enquiries, usually the same working day.
Prefer to talk? Call 081 500 9650.
